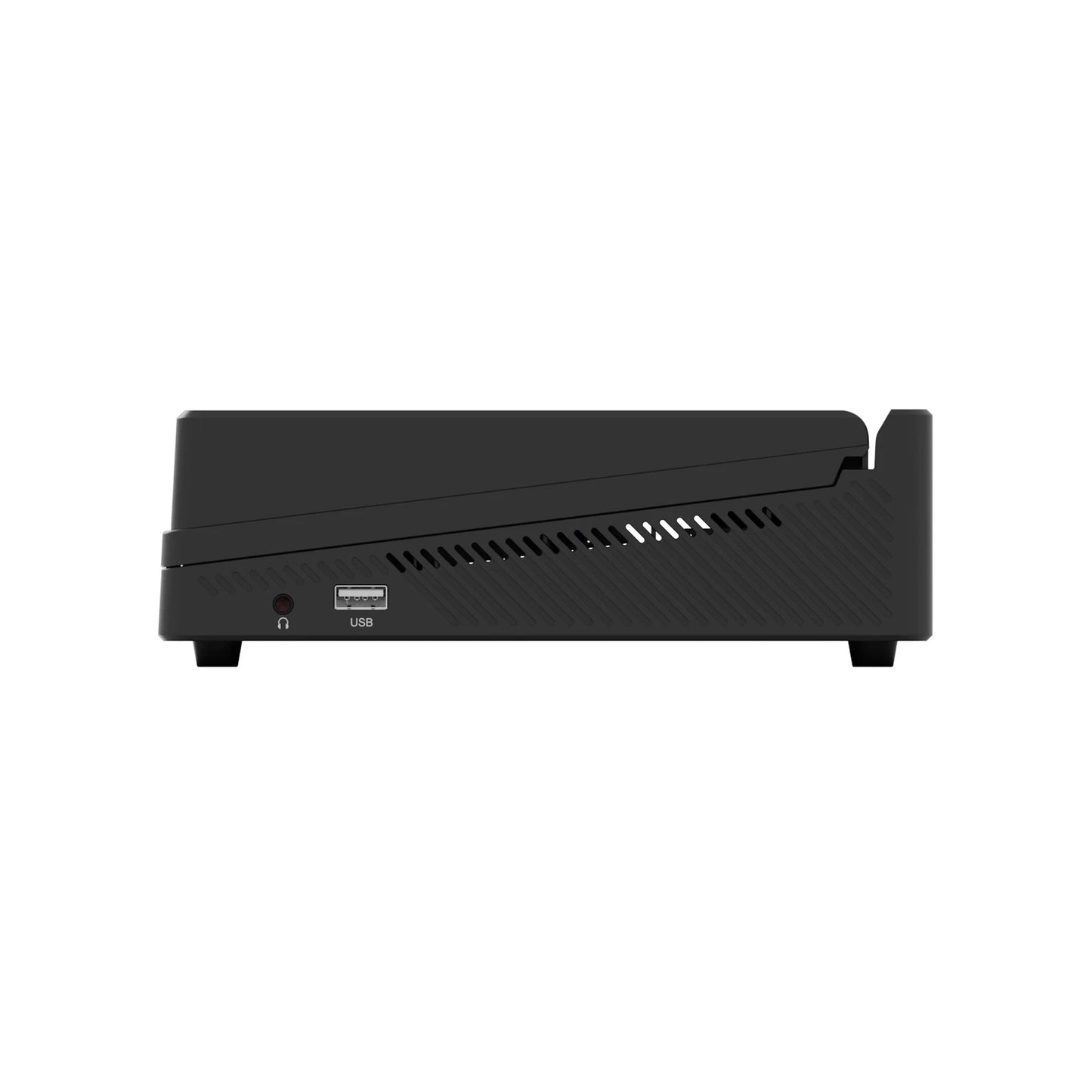

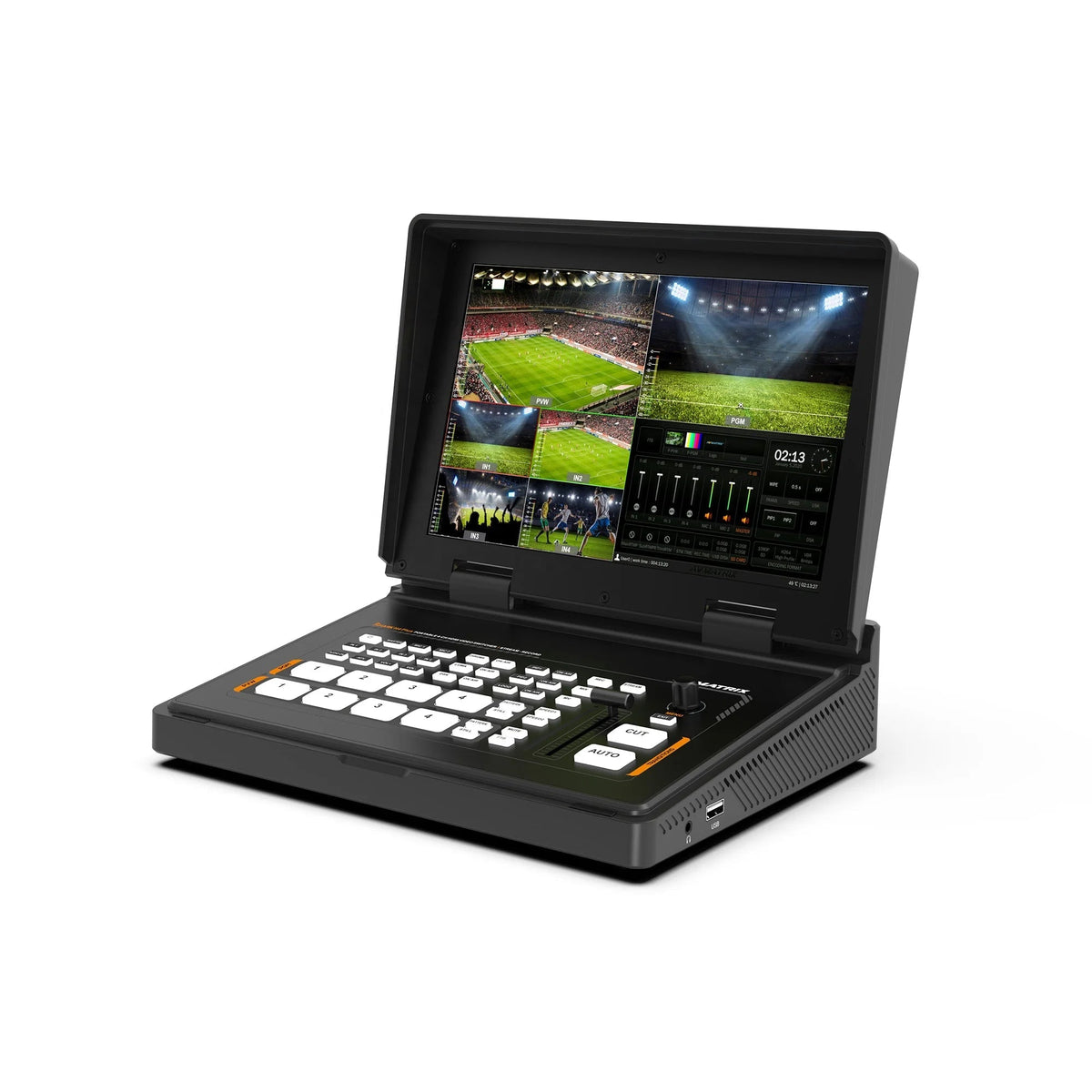

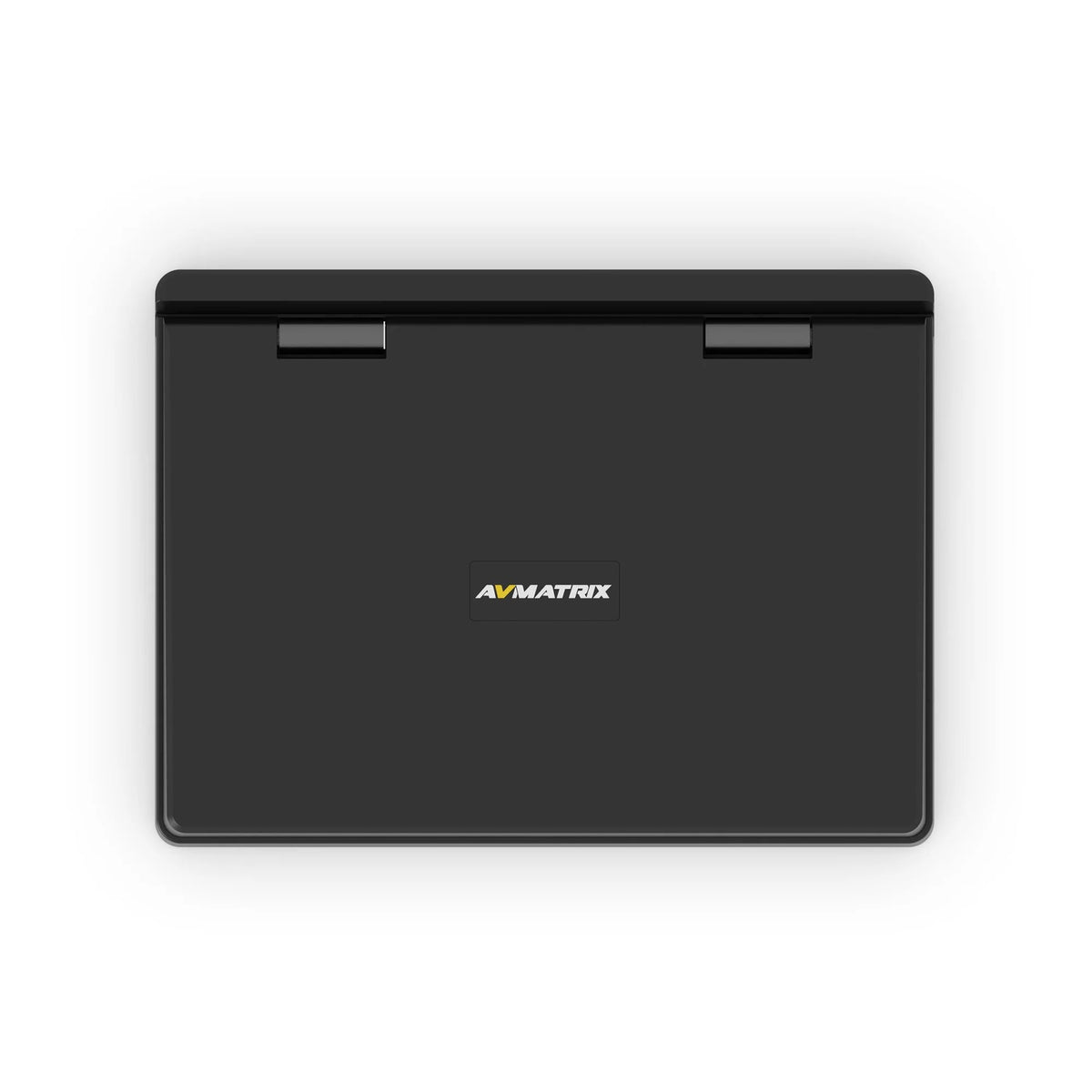

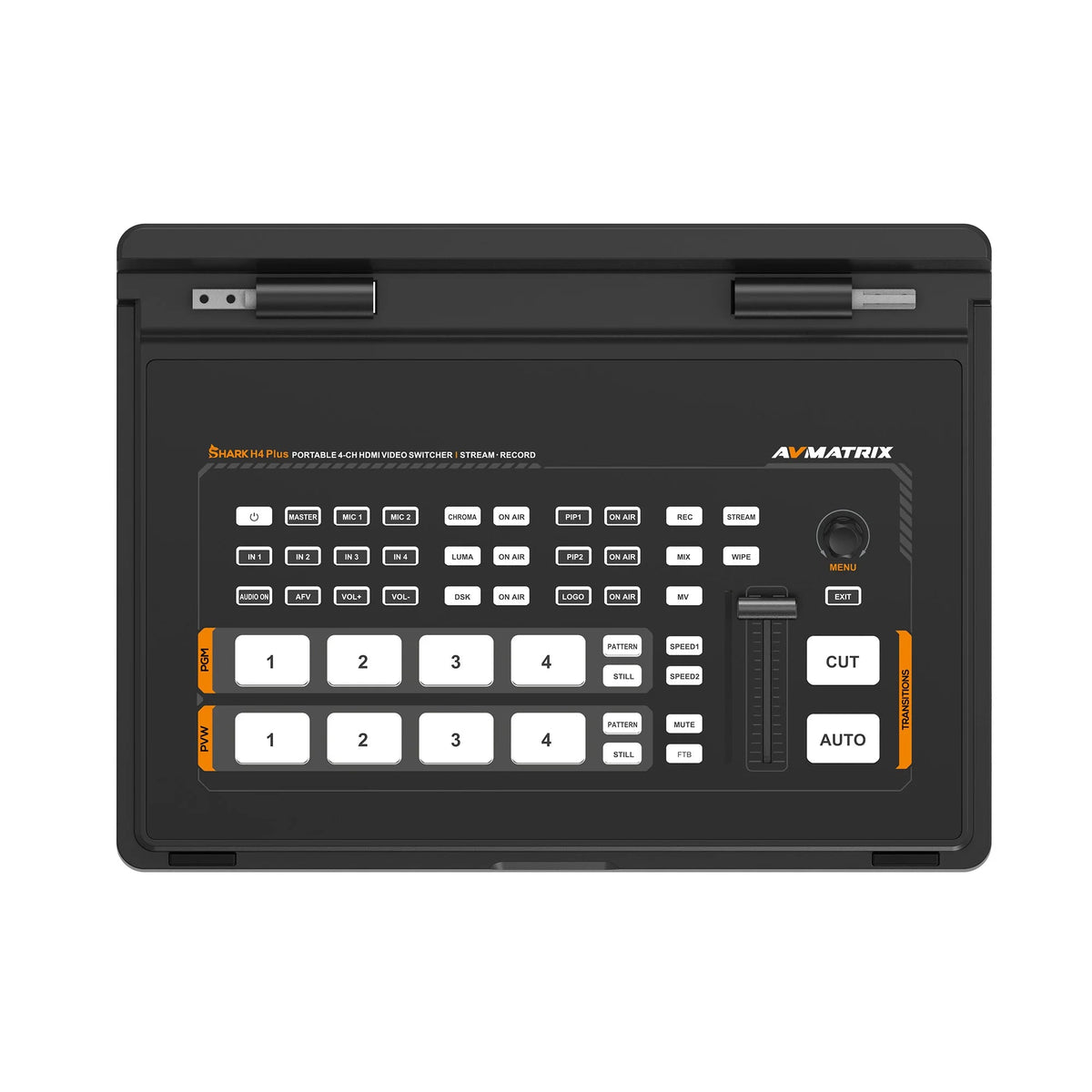

Avmatrix Shark H4 Plus 10.1 inch 4 Channel HDMI Streaming Video Switcher with RTMP/SRT stream & USB disk and SD card Record

Take your live streaming and video production to the next level with the Avmatrix Shark H4 Plus 10.1 inch 4-Channel HDMI Streaming Video Switcher. This powerful and portable multi-format video switcher integrates a full HD 10.1-inch FHD LCD panel and offers a wide range of features including streaming, recording, video switching, and audio mixing. Perfect for professional live broadcasts, event streaming, and video production.

Key Features:

• 4-Channel HDMI Switcher: Supports 4 HDMI inputs with auto-detection for seamless video switching.

• Full HD Display: Integrated 10.1-inch FHD IPS LCD display for clear and detailed monitoring.

• Streaming and Recording: RTMP/SRT stream, USB disk, and SD card recording at up to 1080P resolution and 32Mbps bitrate.

• Versatile Outputs: Includes 2 HDMI PGM outputs, 1 HDMI multiview out, and 1 USB Type-C output for various output options.

• Audio Mixer: Mixes 4 HDMI embedded audio channels and 2 MIC/line-in channels with audio delay.

• Upstream and Downstream Keys: Features Luma key, Chroma key, PIP×2/POP, DSK, and logo overlay for professional video effects.

• Transition Effects: T-bar/Auto/Cut transitions with various effects including WIPE, MIX, DIP, and more.

• Media Library: Stores 39 default patterns, 16 imported images, 16 captured images, and 2 color generators.

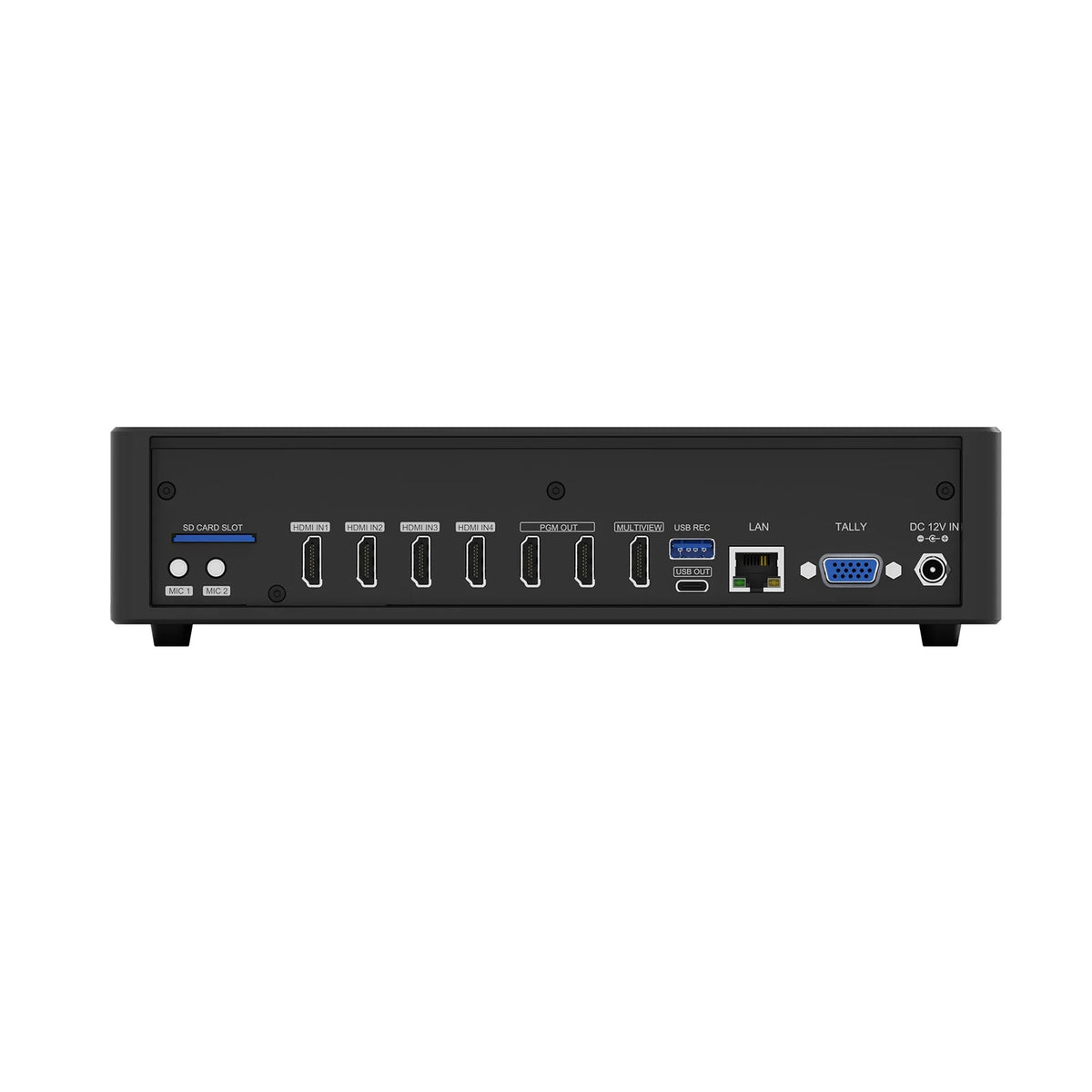

• Flexible Connection Options: HDMI type-A, USB Type-C, LAN, 3.5mm stereo audio, USB Type-A, and DB-15 tally port.

• Compact and Portable: Designed for easy transport and setup, ideal for on-the-go video production.

Specifications:

• Brand Name: Avmatrix

• Model Number: Shark H4 Plus

• Type: 4-Channel HDMI Video Switcher

• Display: 10.1 Inch FHD IPS LCD

• HDMI Inputs: 4 (auto-detected)

• Video Outputs: 2×HDMI PGM, 1×HDMI Multiview, 1×USB Type-C

• Audio Inputs: MIC/Line level (3.5mm stereo audio) ×2

• PC Control Port: LAN×1

• Media Library: USB Type-A ×1 (for image import and firmware upgrade)

• Tally Port: DB-15 ×1

• Power Input: DC 12V ×1

• Bitrate: 2Mbps to 32Mbps (configurable)

• Control Protocols: RTMP, RTMPS, SRT

• Recording Formats: FAT32/exFAT/NTFS for SD card and USB disk

• Recording File Segments: 1 to 120 mins

• Transition Effects: T-Bar/AUTO/CUT, WIPE (11×3 patterns), Mix, DIP, Still (freeze), MUTE, FTB

• Multiview Layouts: 2 styles (6 windows and status)

• Audio Delay: 0-500ms

• Dimensions: Compact and portable design for easy transport

The Avmatrix Shark H4 Plus 10.1 inch 4-Channel HDMI Streaming Video Switcher is perfect for professional video producers who demand high-quality and versatile video switching, streaming, and recording capabilities. Whether you're live streaming events, producing video content, or managing live broadcasts, this video switcher provides the tools you need for exceptional video and audio performance. With its advanced features, flexible connectivity, and compact design, the Shark H4 Plus ensures your video production experience is seamless and professional.
