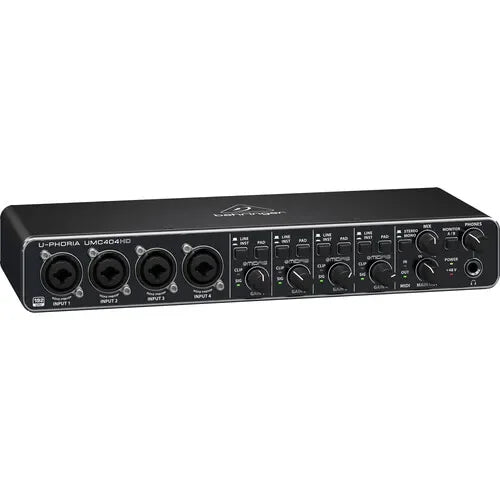

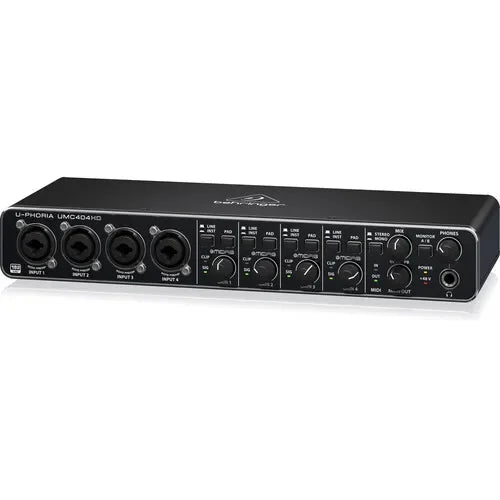

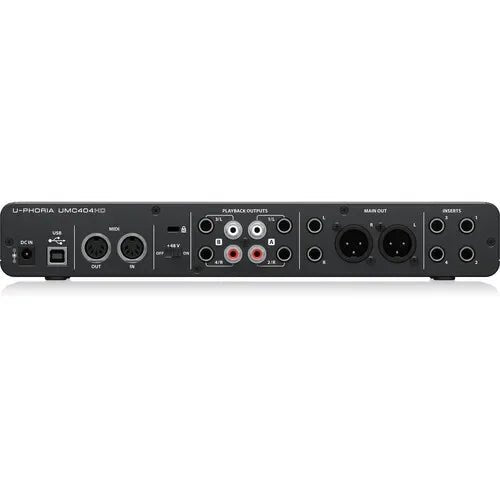

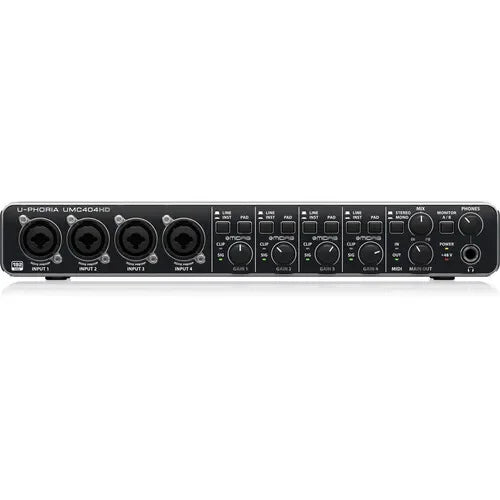

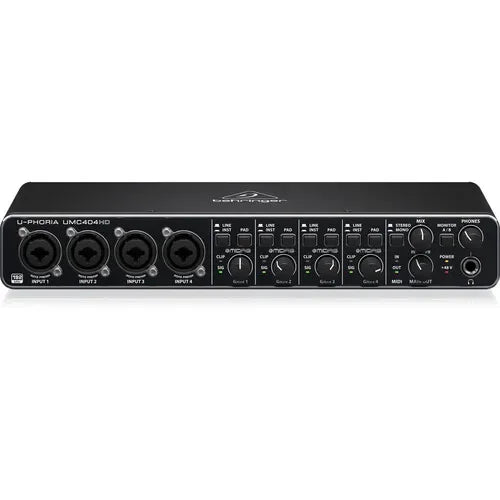

Behringer UMC404HD 4x4 Desktop USB Audio Interface Sound Card – Electric Guitar Live Recording, External Sound Card

Take your recording setup to the next level with the Behringer UMC404HD 4x4 Desktop USB Audio Interface. Designed for professional sound quality, this versatile audio interface is perfect for recording microphones and musical instruments, including electric guitars. With ultra-low latency, multiple input/output options, and compatibility with popular recording software, this sound card ensures seamless and high-quality recording for both home studios and live performances.

Key Features:

1. 4x4 USB 2.0 Audio/MIDI Interface: Ideal for recording microphones and musical instruments, offering 4 inputs and 4 outputs.

2. Professional Sound Quality: 24-bit/192kHz resolution provides crystal-clear audio for your recordings.

3. Software Compatibility: Compatible with popular recording software, including Avid Pro Tools, Ableton Live, Steinberg Cubase, and more.

4. Ultra-Low Latency: Stream 4 inputs/4 outputs and 1 MIDI I/O with ultra-low latency, supporting Mac OS X and Windows XP or higher.

5. MIDAS-Designed Preamplifiers: Equipped with 4 microphone preamplifiers designed by MIDAS, featuring +48V phantom power.

6. Analog Plug-In: Use external effects like compressors with the analog plug-in feature.

7. Direct Monitoring: Enjoy zero-delay direct monitoring during recording with input/play mixing control and stereo/mono switch.

8. Powerful Output: Includes a powerful headphone output with level control and monitoring AB signal source for DJ-style prompts.

9. Comprehensive Controls: Signal and editing instructions for an easy overview.

10. Balanced Main Output: Features XLR and 1/4" TRS connectors for balanced main output.

11. Free Software and Plug-Ins: Access free audio recording, editing, and podcasting software, along with 150 instrument/effect plug-ins.

Specifications:

• Compatible Systems:

  • Windows 7/8/10

  • Mac OS X 10.13/10.12/10.1 or higher

  • Android phones (supporting TYPE-C transmission interface)

  • Apple mobile phones (live broadcast use only, no separate recording support)

• Inputs:

  • 4xMIDAS-designed preamplifiers

  • 4 XLR/TRS combination connectors (microphone/line/instrument)

  • Input level attenuation: 4xPad switch

  • Frequency response: 10Hz-50kHz (-3dB)

  • Impedance: Microphone input: 3kΩ / Instrument input: 1MΩ

  • Maximum input level: Microphone: -4 dBu / Line: +20 dBu / Instrument: -3 dBu

  • +48V phantom power (switchable)

• Outputs:

  • 1x1/4" stereo

  • 2xTRS (main line output)

  • 2xXLR (main line output)

  • 4x1/4" TRS & 4xRCA (play line output)

  • Frequency response: 10Hz-43kHz (+0.3dB)

• System Data:

  • Insertion type: 4x1/4" TRS

  • Insertion impedance: 100Ω send / 10kΩ return

  • Maximum input level: +3 dBu

  • Dynamic range: 100 dB, A-weighted

  • MIDI I/O type: 5-pin DIN; 1 in 1 out

  • Supported sampling rate: 44.1/48/88.2/96/176.4/192kHz

  • Computer bus connection type: USB 2.0, type B

  • Power consumption: 2.5W max

  • Power supply: USB interface (bus-powered) and adapter

  • Dimensions (HxWxD): 45.81 x 292 x 130 mm

  • Weight: 1.2 kg

Package Includes:

• 1 x Behringer UMC404HD 4x4 Desktop USB Audio Interface

• 1 x USB Cable

• 2 x Audio Cables

• 1 x English User Manual

The Behringer UMC404HD 4x4 Desktop USB Audio Interface is perfect for musicians and recording enthusiasts seeking high-quality sound and versatility. With its professional sound quality, ultra-low latency, and wide compatibility, this audio interface ensures seamless and immersive recording experiences. Its multiple input/output options and direct monitoring features make it an excellent choice for both home studios and live performances.
